My attempt at making my rubber mount sporty into a kick ass chopper~

commin along...

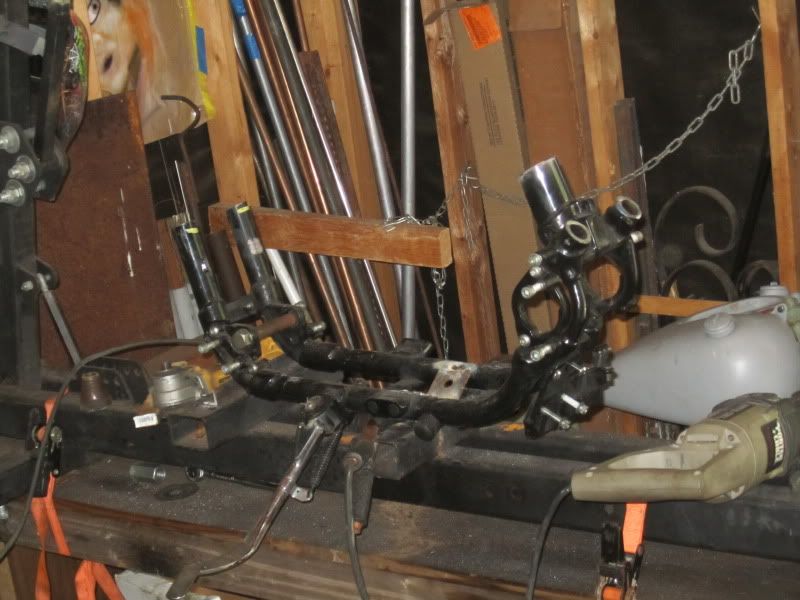

Ummmmmm…..well guess theres no turing back now!


CHECK OUT THAT CLEARENCE BITCHES!!!! HAHA

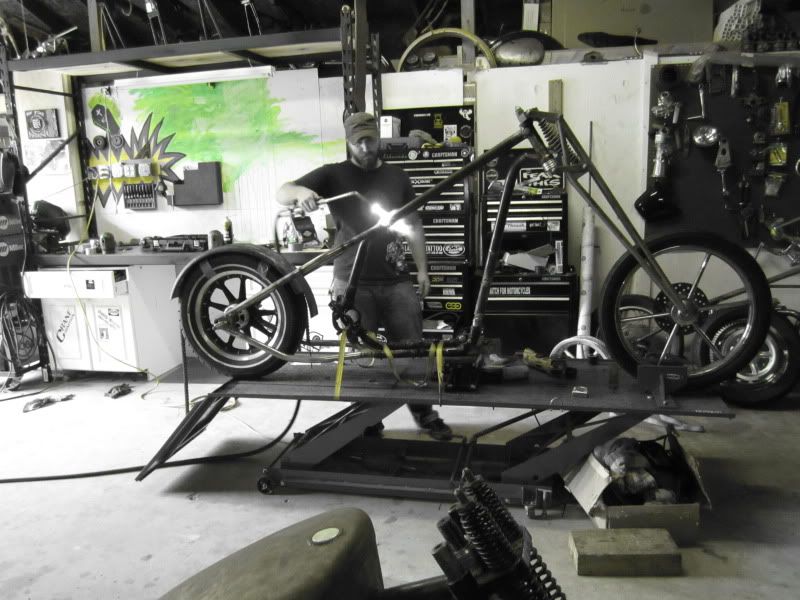

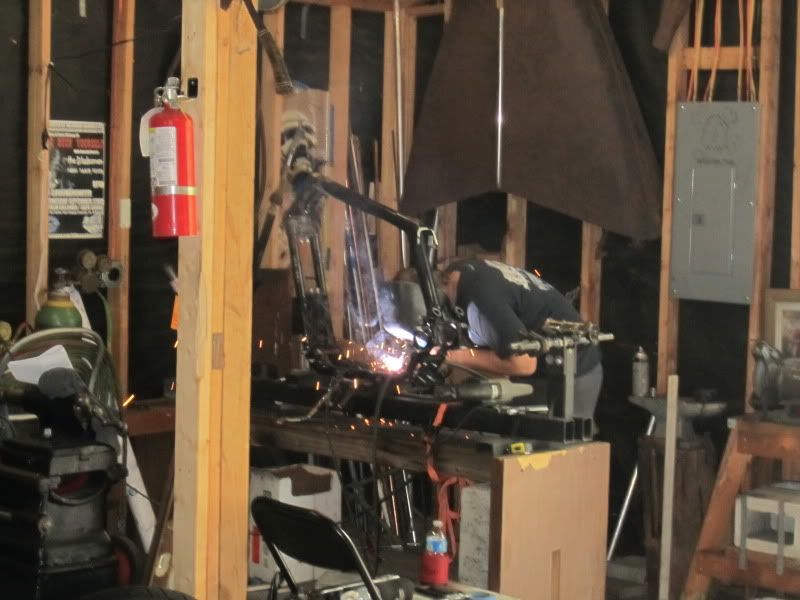

We finished the frame up to the point where I could bring it home and weld up the gusseting and braces myself
http://i289.photobucket.com/albums/ll237/oldskool8/long%20bike%20build/IMG_1557.jpg[/IMG
Ran into A LOT of trouble with the front end…man this thing fought us….My buddy Drew at Freak Show Fabrications had some big washers and threw them into the lathe to open them up and turn down the outside so they would fit flush in the neck…he really saved the day with this front end
[IMG]http://i289.photobucket.com/albums/ll237/oldskool8/long%20bike%20build/IMG_1553.jpg

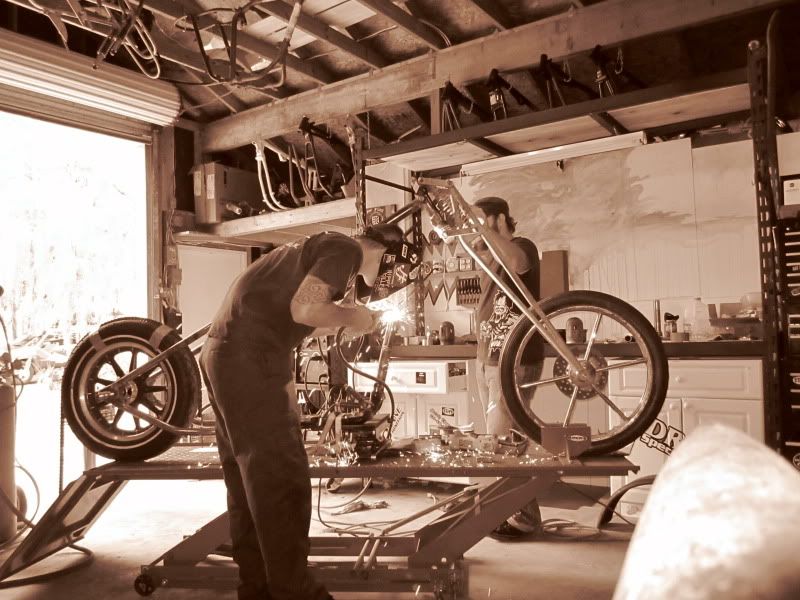

Some cool shots and artsy fartsy shots


3 generations (from front to back) 04 rubber mount, Drews solid mount, and behind that an ironhead Drew is building for someone



·
Registered
Joined
·
457 Posts
now that's choppin'!!! sparks flying, welds smokin', i can feel the fun in the air.

and the links on the girder are even level!

this ain't your first rodeo, eh?

nice HL bracket, btw.

-dan


·
Registered
Joined
·
245 Posts
Discussion Starter · #9 ·
thanks budoka! actually this is my first ground up build...but man am I havin fun!!

just a pic...I finished welding on the frame today (besides the obvious little stuff like brake brackets and oil bag mounts)...got all my gusseting in...(can ya guess what I used?...hint...I left the orange color on it) I still have ALOT of grinding to do (no worries I'm not going to comprimise the integrity of the support welds) but I should be close to done with grinding and everything tomorrow...then I can start getting the rear fender figured out..sissy bar, seat and bars figured out)...
I threw my old bars on there today just to play and let me tell ya...WAAAAAHOOOOOOO I'm in love with this chopper!!!!!!!!!!!!!


·
Registered
Joined
·
269 Posts
Awesome start. Don't take this wrong, but for my taste, I would like to have the bottom of the frame a bit more level with the ground... that is, a little more rake on the frame. Maybe its the way the picture was taken. The rear tire does look like its on something.


·
Registered
Joined
·
245 Posts
Discussion Starter · #12 ·
Awesome start. Don't take this wrong, but for my taste, I would like to have the bottom of the frame a bit more level with the ground... that is, a little more rake on the frame. Maybe its the way the picture was taken. The rear tire does look like its on something.
yeah its a little uneven...I might (not in the near future) end up with an 18 on the back...that would prob even me out nice and I could stay very skinny with an 18....its currently de-raked at 29 degrees...but i'm thinking she'll handle like a dream!


·
Registered
Joined
·
245 Posts
Discussion Starter · #13 ·
Is this the bike you started with?



If so, you are making some serious progress
LOL yeah it sure is!...and I don't care what anyone says I still love'd that bike! I still got the tins in my garage. BUT!!!!!! I didn't build it...I put it together...so it always left me wanting more


·
Registered
Joined
·
190 Posts
You ditching the front rubbermount??

Also, you've come a long way! Your skills are def improving...not that they were $hit before, but you know what I mean. :)


·
Registered
Joined
·
1,596 Posts
keep the pics coming...I love reading about new home builds!! Always enjoy learning new stuff..


·
Registered
Joined
·
245 Posts
Discussion Starter · #17 ·
Thanks for the kind words guys! it means alot especialy on this board since its a more traditional oriented forum.

You ditching the front rubbermount??

Also, you've come a long way! Your skills are def improving...not that they were $hit before, but you know what I mean. :)
Gonna keep the front rubber mount...thats how the lower motor mount is on the stock frame and I'll be making the top rubber motor mounts (there is 2 of them).

Thanks for the props...and I do know exactlly what you mean and agree.


·
Registered
Joined
·
245 Posts
Discussion Starter · #18 ·
For Gods sake it seemed to take forever! I talked with the led sleds guys a while back and they told me if I was going to use 120 wall tubing it would be fine but I should guesset the hell out of it...sooo
I would have prefered to leave it bare honestly but for structural integrity I was told by the pros it was the best move and there will be a big ass seat and a big ass covering it all up so I can live with it


Also I carved about an 1.5" out of it to give it a bit of a cressent moon shape for more strength

You can also see in that pic how I "molded" the neck to the backbone a bit. I'm gonna run it sloppy for a bit to make sure everything holds up well and after I've put some good miles on her I'll tear her back down and take the bondo to her to smooth everything in.
Lastly I scored this awesome octogon oil tank off ebay for a steal! came off a 69 trump...just got to figure out the pluming to make it work for the sporty. Also I think I found a really cool way to mount the tank (but I'm worried my chain will get in the way) if all the clearences work out can anyone see any issues with me welding it right to the frame?


Pretty sure I need my motor in the frame at this point to figure out all my clearence issues.
If anyone has any input on what I should be doing next please chime in...at this point I'm just thinking my next move in motor in.
